Yra tiekėjo sandėlyje. Numatomas užsakymo pristatymo laikas 07.10.2025

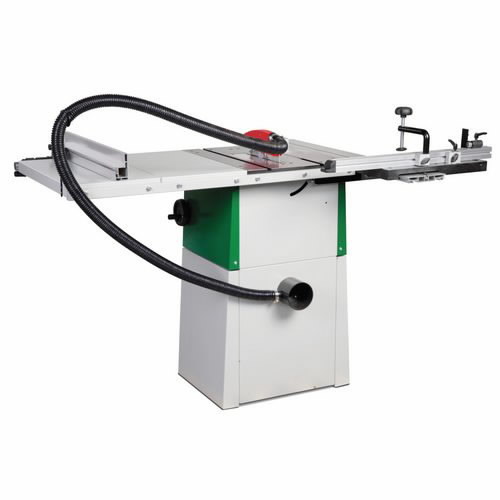

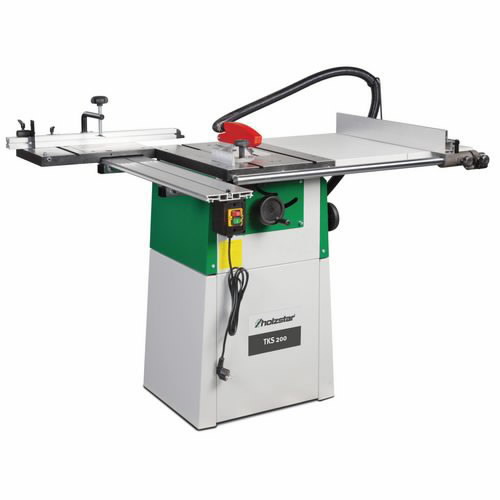

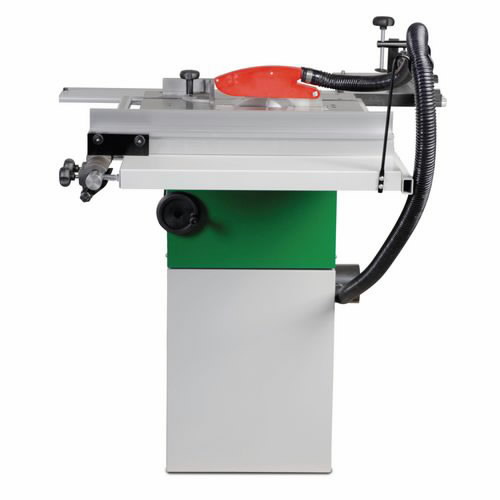

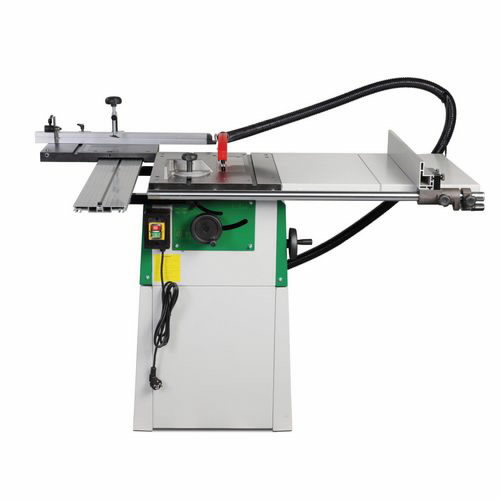

Circular saw unit
Max. cutting width with rip fence705 mm
Max. cross cut width left from saw blade635 mm
Saw blade angle45 - 90 °
Max. cutting height 90°60 mm
Max. cutting height 45°48 mm
(Main) saw blade diameter200 mm
(Main) saw blade speed4500 min¯¹
Dimensions and weights
Length1430 mm
Width/depth1000 mm
Height1030 mm
Weight approx.80 kg
Dust extraction port
Extraction port diameter bottom100 mm
Saw blade protection extraction port diameter30 mm

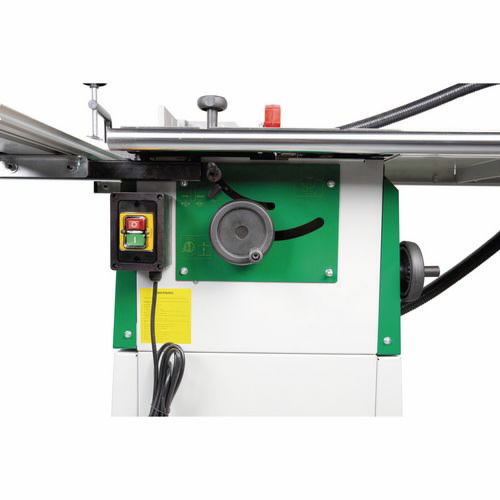

Electric Data
Drive motor output0.75 kW
Absorbed power drive motor1.1 kW
Total output1.1 kW
Total rated value4.6 A
Supply voltage230 V
Phase(s)1 Ph
Current typeAC
Mains frequency50 Hz
Noise emission
Sound pressure level78.5 dB(A)

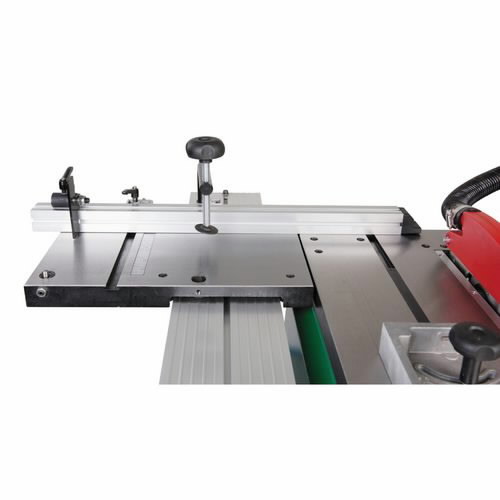

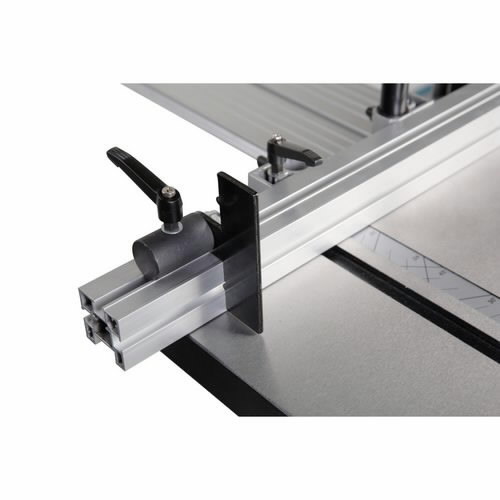

Sliding carriage and table
Sliding carriage length400 mm
Sliding carriage width250 mm
Table length530 mm
Table width400 mm
Work height870 mm

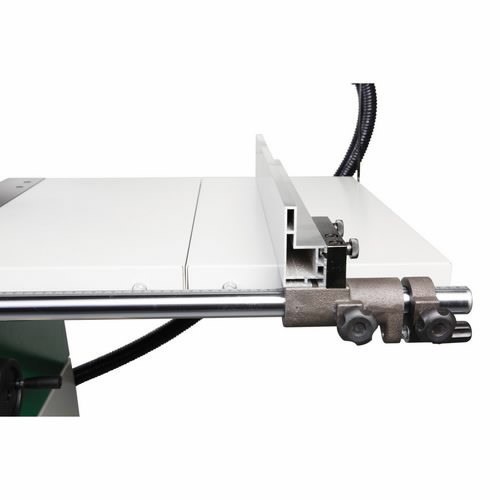

Max. cutting width with rip fence705 mm
Max. cross cut width left from saw blade635 mm
Saw blade angle45 - 90 °
Max. cutting height 90°60 mm
Max. cutting height 45°48 mm
(Main) saw blade diameter200 mm
(Main) saw blade speed4500 min¯¹
Dimensions and weights
Length1430 mm
Width/depth1000 mm
Height1030 mm
Weight approx.80 kg
Dust extraction port
Extraction port diameter bottom100 mm
Saw blade protection extraction port diameter30 mm
Electric Data
Drive motor output0.75 kW
Absorbed power drive motor1.1 kW
Total output1.1 kW
Total rated value4.6 A
Supply voltage230 V
Phase(s)1 Ph
Current typeAC
Mains frequency50 Hz
Noise emission
Sound pressure level78.5 dB(A)
Sliding carriage and table
Sliding carriage length400 mm
Sliding carriage width250 mm
Table length530 mm
Table width400 mm
Work height870 mm
