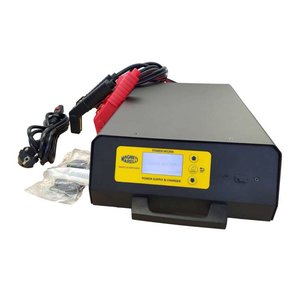

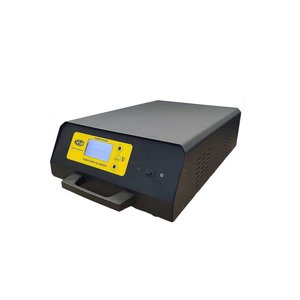

Professional battery charger M120A

The POWER M120A multi-purpose charger is designed to charge all types of batteries, including: lead acid, maintenance-free, standard, gel, nonwoven, AGM, EFB and lithium-iron-phosphate (LFP). POWERM120A will automatically charge deeply discharged batteries with a 6 (LFP) or 8 step deep discharge recovery program. It has a power backup function to buffer data (e.g. radio, controller, etc.) during battery replacement („Memory Saver”) and a buffer charging mode that maintains battery charge and electrically stabilises the vehicle’s electric system when the engine is turned off. In buffer mode, the charger can supply power to the vehicle’s controllers, e.g. during firmware updates, recalibration or configuration, which proves highly useful in Pass Thru procedures. POWER SUPPLY MODE Maintaining correct power supply during demanding diagnostics and control unit reprogramming Adjustable voltage 12 ÷ 14.8 V Maximum supply current 120 A SHOWROOM MODE For long term power backup – in showroom vehicles With a height of only 110 mm, it can easily be placed under the vehicle Lock mode MEMORY BACKUP MODE When connected to terminals, the charger maintains appropriate power supply to systems, preventing loss of settings and/or generating errors when vehicle battery is disconnected BATTERY CHARGING MODE Automatic or manual adjustment of charging current 8-step charging (6 steps for lithium batteries) Graphical charging status indicator TECHNICAL SPECIFICATIONS Max. charging current: -12 V 120 A Standard charging with desulphation, battery excitation and diagnostics 12.0-14.8 V, max. 100 A Battery capacity: 20-400 Ah 12 V Lead Acid, 12 V AGM Flat/Spiral, 12 V EFB 12 V VRLA/GEL, 12 V EFB 12 V VRLA/GEL, 12 V Lithium (LiFePO4). Capacity of charged batteries: 20-400 Ah Charging cables length: 2 x 5 m Operating temperature range: -0°C - +50°C Charging cable cross-section: 25 mm2 Power supply voltage: 230 V, 50/60 Hz Power consumption: 1600 W max Nominal battery voltage: 12 V Weight (excluding power supply and power cord): 6.6 kg Protection class: IP20 Backup charging – „Showroom” mode: 12.0-13.2 V max. 50 A Temperature compensation: Yes Modifiable buffer charging: 12.0-14.8 V, max. 120 A (20 A input) Ripple < 200mVpp Dimensions (L x H x W): 254 x 370 x 110 mm Backup power supply for battery changes – “Memory Saver” mode 12.9 V 3-30 A Weight: 6,2 kg INCLUDED Battery charger Detachable charging cables: 2 x 5 m Power supply cable Wall mount: 4 pcs. Operating manual Safety instructions
