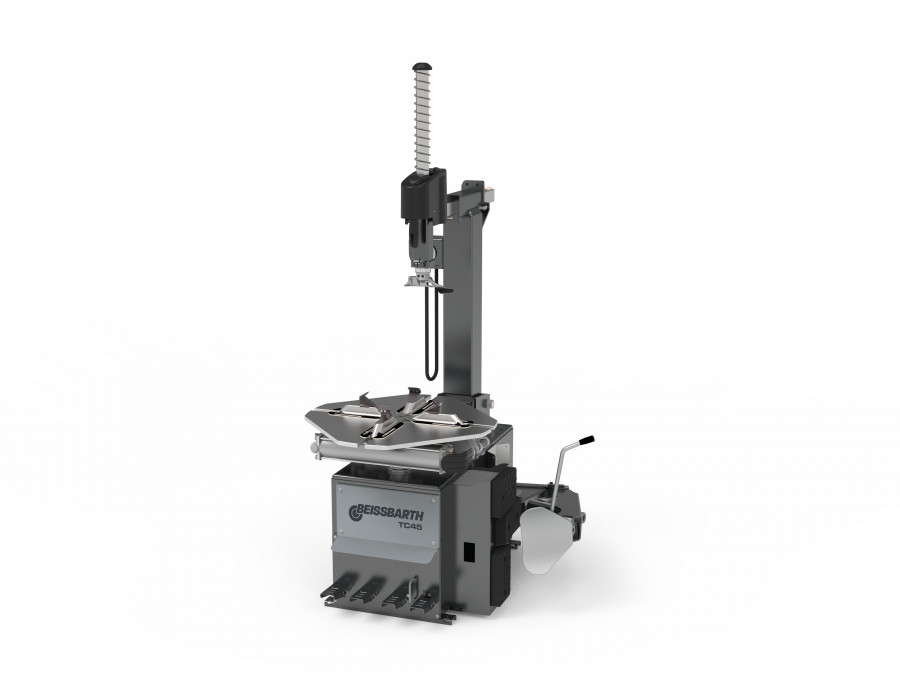

Tyre changer TC45 TI

Automatic tilt-back tyre changer | 10-27" working range | 15" standard bead breaker | jaw inflation technology | 400V Square turntable with automatic centering jaws Clamping range from 10-27" Double 80mm cylinders for maximum clamping power 2 rotation speeds: 8 & 16 rpm Square shape for easier lever use Robust mounting column and head Easy tilting via pedal Quick vertical and horizontal movement of arm Pneumatic locking Powerful bead breaker side shovel Quick and effective loosening of the bead Up to 15" tyre width Three-way adjustable blade Controlled via pedal Anti-skid rubber pad protects tyre and rim Full control with four pedals plus side inflation pedal Pedal control for rotation, side shovel, column tilting, and clamping Removable pedal unit for easier maintenance Safety separator for rotation pedal Side inflation pedal High rigidity by design Full metal pedals Powerful 50x50mm horizontal arm Metal front cover TI: Tire inflation via claws Fast and secure gripping of the bead on the rim Both hands free during inflation and bead seating Minimizes the risk of air leaks or tire bursts Easy tire inflation via claws 18-liter air tank Upgrade options: TCX.PRO, PRO2 or PRO3 assistance column Side lift Tubeless inflation kit Roller board Scope of deliveries: 5x front head protection 2x rear head protection Standard lever Brush 400V plug Technical data: Max. wheel diameter 46" | 1160 mm Operating pressure 8 - 12 bar Rapid inflation ja Max. wheel width 15" | 381mm Length 1450 mm Height 1900 mm Width 1030 mm Power supply 400V | 3Ph | 50-60Hz Motor power 0,8 - 1,1 kW Max. clamping capacity 27 " Max. torque 1200 Nm Space requirement width 1450 mm Space requirement length 1850 mm Rotation speed 8 | 16 rpm Packaging length 750 mm Packaging width 1100 mm Packaging height 1100 mm Min. clamping capacity 10 " Number of mounting speeds 2 Clamping device design Clamping plate Min. inner clamping range 12 " Max. inner clamping range 27 " Min. outer clamping range 10 " Max. outer clamping range 24 " Mounting head design With tire lever Mounting arm design Moveable Mounting column design Tiltable Bead breaker cylinder force 25000N @ 10bar Beda breaker force on shovel 13000N @ 10bar Tyre inflation Claw inflation Turntable height 670 mm Bead breaker operation Foot control
