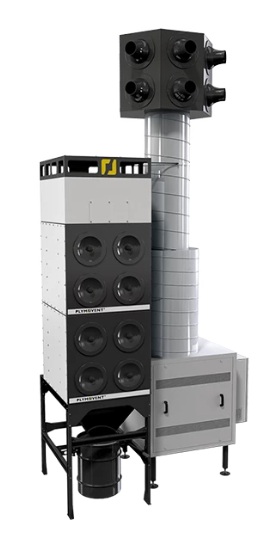

Suvirinimo dūmų filtravimo sistema MDB-Diluter Pro

Diluter PRO is equipped with intuitive PRO control panel with touchscreen. PRO control panel is very simple to use. It can be connected to internet which makes possible a monitoring of the unit and also to update the system. Technical data: Operational volume (m³/h): up to 9000 m3/h (maximum airflow 12 000 m3/h); Fan power: 7,5 kW; Filters: 120m2 PTFE. Reach of airflow out of diluterhead: up to 50m; Compressed air consumption: up to 150l/min; Dustbin capacity: 100l; It is equipped with spark arrester; Noice level: <=69 dB; Filter cleaning: automatic; It is equipped with frequency inverter and air pressure control system. It allows to keep the operational air volume on same level at all time. If needed, it allows to adjust the air volume, safe electrical energy and to extend the lifetime of the filter. Machine have an automatic programm, which swithes on and off the unit at needed time. The Diluter system is a stand alone general filtration system, developed to reduce and control the background concentration of welding fumes in a workshop. It makes sure that legal limits for welding fumes are not exceeded. Diluter systems are the ideal solution if source extraction and hoods are not an option, for example when large pieces of metal are being fabricated, various welding processes take place at changing locations or when ductwork is difficult to install. The Diluter system recirculates the indoor air in the facility. The central filter system extracts polluted air and brings clean, filtered air back into the workshop via the outlet nozzles. This recirculation reduces the need for ventilation with outside air. Expensively heated or cooled air stays within the workshop, reducing your costs and your operational impact on the environment. The Diluter system is easy to install because it does not require any ductwork, which also reduces labour costs. Nuotraukos ir vaizdo įrašai yra iliustratyvūs.
