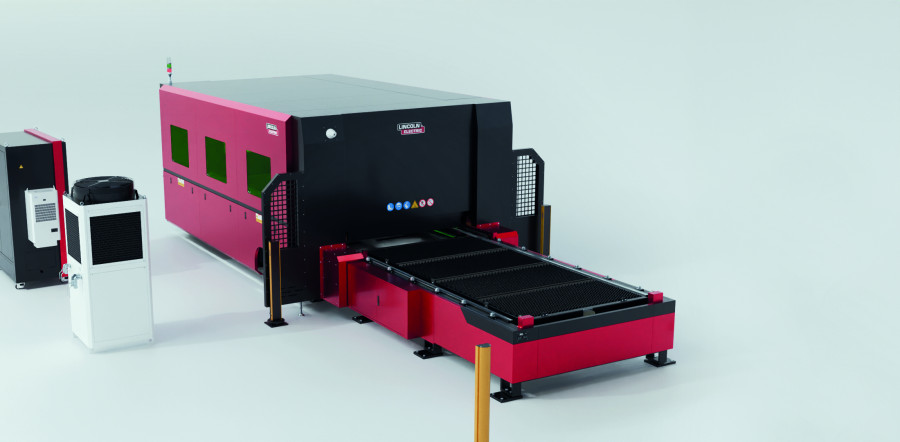

Laser cutting machine Linc-Cut Fiber 1530A

Laser cutting machine Linc-Cut Fiber 1530A Linc-Cut Fiber 1530A is a sheet-metal laser cutting machine, which provide a superior cut quality. It is a complete Turn Key Solution and provides remarkable benefits: • Centralised control console • Fiber laser power source of 3 kW or 6 kW • Double shuttle table 1500 x 3000 mm • Protective enclosure • Security windows for better viewing • Secure laser head access door • Light safety barrier • Fume Extraction with DIGIFILTER • 2 year warranty. Main performances: • Work area (mm) - 1 530 x 3 100 mm (For sheet metal size: 1 500 x 3 000 / 1 250 x 2 500 / 1 000 x 2 000 mm). • Max load - 1000 kg • Positioning speed - 110 m/min • Precision of positioning - 0,03 mm • Cutting capacity: - 3 kW model - Productivity up to 16 mm; Maximum up to 20 mm. - 6 kW model - Productivity up to 20 mm; Maximum up to 25 mm. Everything is designed to produce the best cutting quality: • Linear guides • Fast Accel/Decel • Rigidity and mechanical precision • Automatic lubrication • Perfect synchronisation between the laser and machine movements. Sustainable • Machine structure with integrated suction section. • Drawers for small parts and small scraps. • Smoke extraction with DIGIFILTER. • Protection of the machine frame against power laser using refractory bricks. • Automatic lubrication of linear rails and helical rack pinions. • Automatic gas selection and regulation. • Electrical cabinet with air conditioning. • Interior cabin lighting using LED strips. • CNC remote control. • Laser head cleaning brush on cycle. Nuotraukos ir vaizdo įrašai yra iliustratyvūs.
