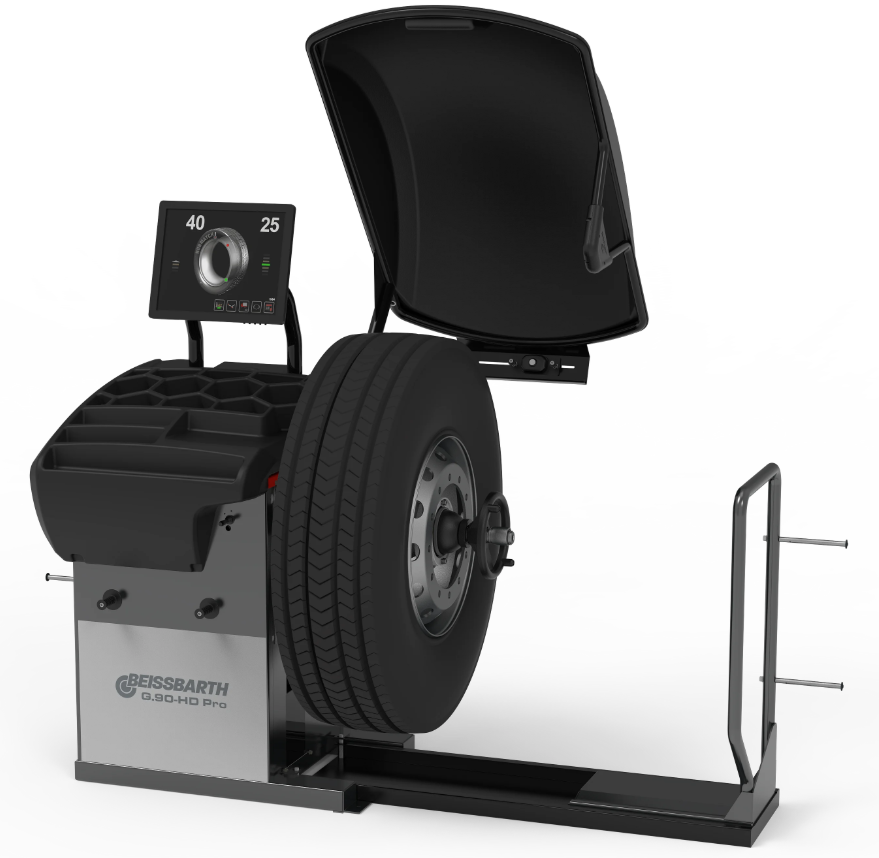

Wheel balancer G.90 HD Pro

Diagnostic wheel balancing machine for buses and trucks with height-adjustable flange Included in the delivery: Quick lock ring Clamping cap Pressure ring 4-arm and 5-arm centering kit 1692502026 300g counterweight Weight pliers Measuring gauge

Easy clamping with the wheel on the ground instead of mid-air No separate wheel lift required Slide with only 59mm build height enables easier lateral movement

Balancing of truck wheels in 8 seconds Wheel stopping in exact position via electromagnetic brake LED for enhanced visibility when placing weights Inner line laser for precise weight positioning Split program for dividing and hidden attachment of weights behind the spokes

Automatic measuring arm for distance and diameter measurement and weight placement Extended measuring arm up to 32" rim diameter Automatic selection of clip-on or adhesive weight program Highest measurement accuracy +/- 0.5g

Automatic detection of wheel width for steel and aluminum wheels No manual input required with measuring gauge Balancing program starts automatically upon closing the wheel guard

Graphical representation of all processes Simplifies correct balancing with guided workflows Operable even with gloves

Mechanical clamping with quick clamping nut Stable 40mm shaft Handles wheel weights up to 200kg

Automatic runout measurement during each balancing operation Hub matching: eliminates vibrations by rotating the tire on the wheel Eliminates even the finest vibrations without the need for expensive load rollers
