MIG Suvirinimo aparatas Artsen II PM400 AD, pulse, komplekta

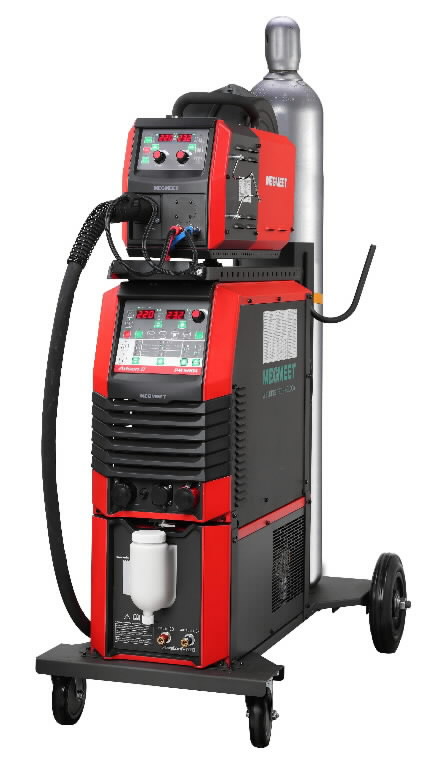

Inverter based professional welding machine with separated wire feeder. It is suitable for MIG/MAG, Pulsed MIG and Double Pulsed MIG welding of mild steel, stainless steel and aluminium. Easy settings with synergic welding programs and intuitive interface. Perfect wire feedability: 4 drive rolls. Technical specifications: Input - 380V +/-25% 3f/50Hz. Current range - 30-400A. Duty cycle - 400A @100%. Welding modes - 2T / 4T / Special 4T / Spot Welding / Intermittent Welding. Welding programs: Mild steel: - solid wire 0,8/1,0/1,2mm at 100% CO2 and 80% Ar + 20% CO2 - flux cored wire 1,2mm at 100% CO2. - single pulse 0,8/1,0/1,2mm. - double pulse 0,8/1,0/1,2mm. Stainless steel: - flux cored wire 1,2mm at 100% CO2. - single pulse 1,0/1,2mm. - double pulse 1,0/1,2mm. Aluminium: - single pulse 1,2mm (pure aluminium / aluminium silicon alloy, aluminium magnesium alloy). - double pulse - pure aluminium 1,2mm; aluminium silicon alloy and aluminium magnesium alloy 1,0/1,2mm. Wire range - 0,8-1,2mm. Protection class - IP23S. Kit includes: Power source, wire feeding unit, liquid cooling unit, 5m interconnection cable, trolley, ground cable (5m), input power cable (3m), V-type drive rolls 0.8mm/1.0mm and 1.2mm/1.6mm and also U-type (for aluminium) 1.0/1.2mm and 1.2/1.6mm. Warranty period for power source is 36 months. The warranty period for other components (wire feeder, cooler, etc) is 12 months. Nuotraukos ir vaizdo įrašai yra iliustratyvūs.
