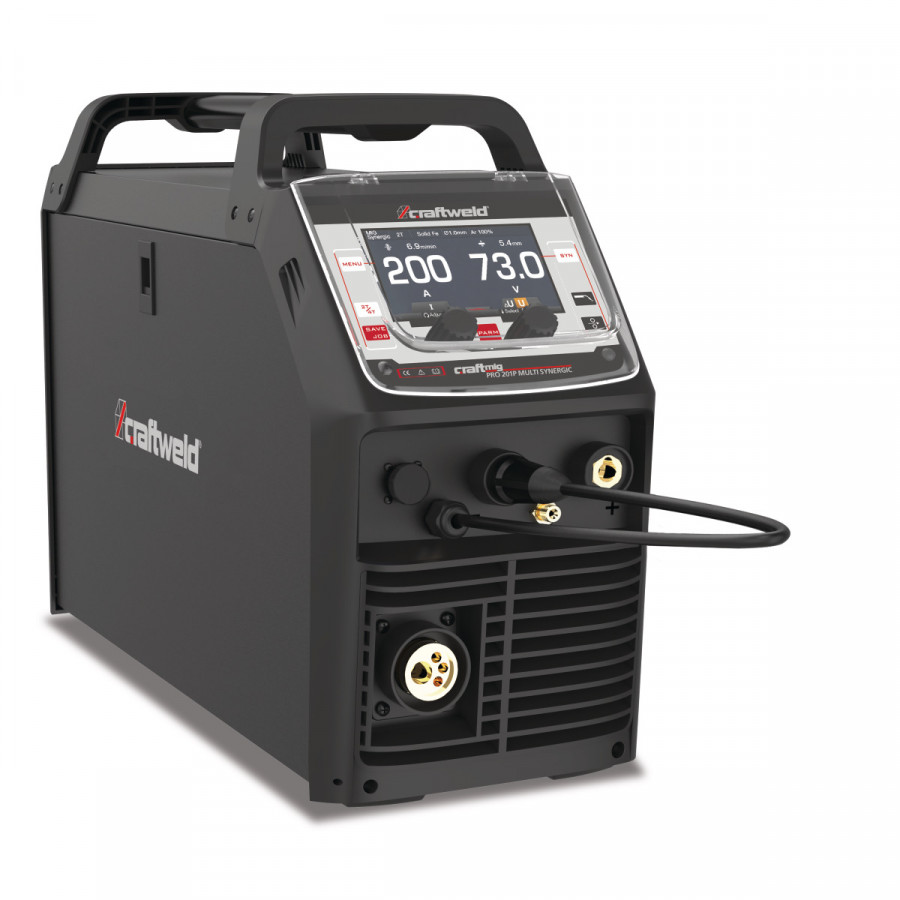

MIG and TIG welder Craftweld Craft-MIG Pro 201P Multi Synergic

An ideal compact welding machine that combines all processes in a single device: - MIG/MAG (gas-shielded wire welding) - TIG AC (tungsten electrode welding with alternating current) – allows welding aluminium and its alloys - TIG DC (tungsten electrode welding with direct current) – allows welding mild steel, stainless steel, nickel alloys, copper and titanium - MMA (AC & DC) – covered electrode welding The machine is perfectly suited for welding metal up to 5–6 mm thick. Description: MIG/MAG with synergic characteristics – easy machine setup with only 3 steps to achieve the optimal welding result. The machine integrates all functions of a standard TIG AC/DC unit, including spot welding and pulse mode. Extremely easy to use thanks to the colour display, featuring graphical arc curve representation and intuitive adjustment options. PFC control ensures smooth power consumption and maximum efficiency. Inverter technology ensures a stable welding current and reliable performance with different material thicknesses. Automatic voltage compensation guarantees stable operation. LCD display for easy setting of welding parameters. Thermal overload protection for maximum safety. Suitable for generator use. Note: The machine is delivered without accessories, except for the gas hose. Technical specifications: Power supply: 1-phase / 50–60 Hz, 110/230 V Welding current: 10–200 A (in MIG process 30-200A) Duty cycle: 200A@30%; 140A@60%. Wire feed speed: 1.5–16.5 m/min Wire feed mechanism: 2-rollers Wire diameter: - steel - 0,6-1,0mm - stainless steel - 0,8-1,0mm - aluminium - 0,8-1,0mm - CuSi - 0,8-1,0mm - cored wires - 0,8-1,0mm Maximum diameter of the wire spool: 200mm (5kg) Power source dimensions: 630 × 240 × 420 mm, weight 20 kg Included in the package: 4m gas hose MIG and TIG torches are not included. Ground cable is not included. Nuotraukos ir vaizdo įrašai yra iliustratyvūs.
