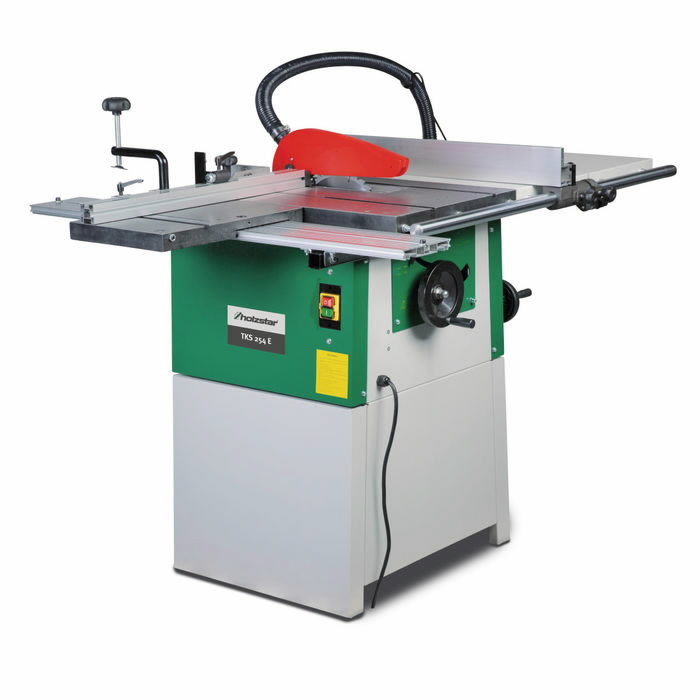

Formatinės pjovimo staklės TKS 254 E (230V)

Cutting width with rip fence680 mm Max. Cutting width to the left of the saw blade650 mm Saw blade tilt45 - 90 degrees Max. Cutting height 90 °80 mm Max. Cutting height 45 °58 mm Diameter (main) saw blade254 mm Speed ??(main) saw blade4000 min-1 Sliding table length400 mm Sliding table width250 mm table length635 mm table width420 mm table height850 mm Power drive motor1.5 kW power consumption2.1 kW Diameter exhaust port below100 mm Diameter exhaust pipe above30 mm Supply voltage230V Phase (s)1 Ph Current TypeAC power frequency50 Hz Total connected value9.3 A overall performance2.1 kW Length (product)1430 mm Width / depth (product)1000 mm Height (product)1030 mm Weight (net)105 kg
