Produkto informacija

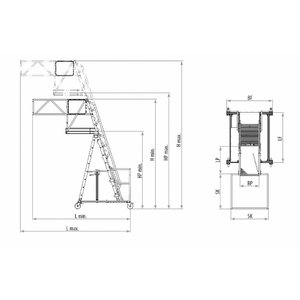

Dimensions
Platform length (LP) approx. m 1.05
Platform width (BP) approx. m 0.67
Total height max. (H max.) approx. m 5.16
Total height min. (H min.) approx. m 3.83
Total length max. (L max.) approx. m 3.83
Total length min. (L min.) approx. m 3.40
Total width (BF) approx. m 1.59
Protective cage dimensions (SK) approx. m 1.30
Permissible load kg 150
Weight approx. kg 352
Height adjustment

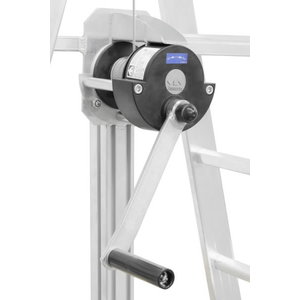

Rope winch with transmission approx. kg 300
Quantity pcs. 1
Adjustment range
Platform height max. (HP max.) approx. m 4.03
Platform height min. (HP min.) approx. m 2.70
Adjustment range approx. m 1.33
Chassis

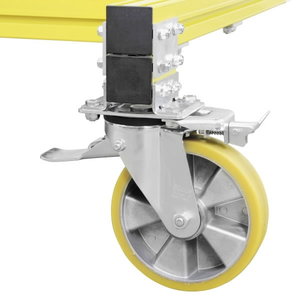

Steering castors Ų 200 mm pcs. 4
Mobile cross-beam (BF) approx. m 1.59
Chassis length (LF) approx. m 1.82
