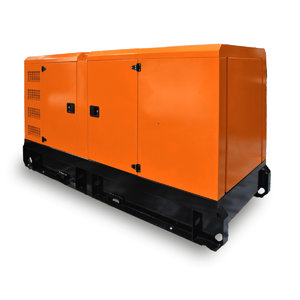

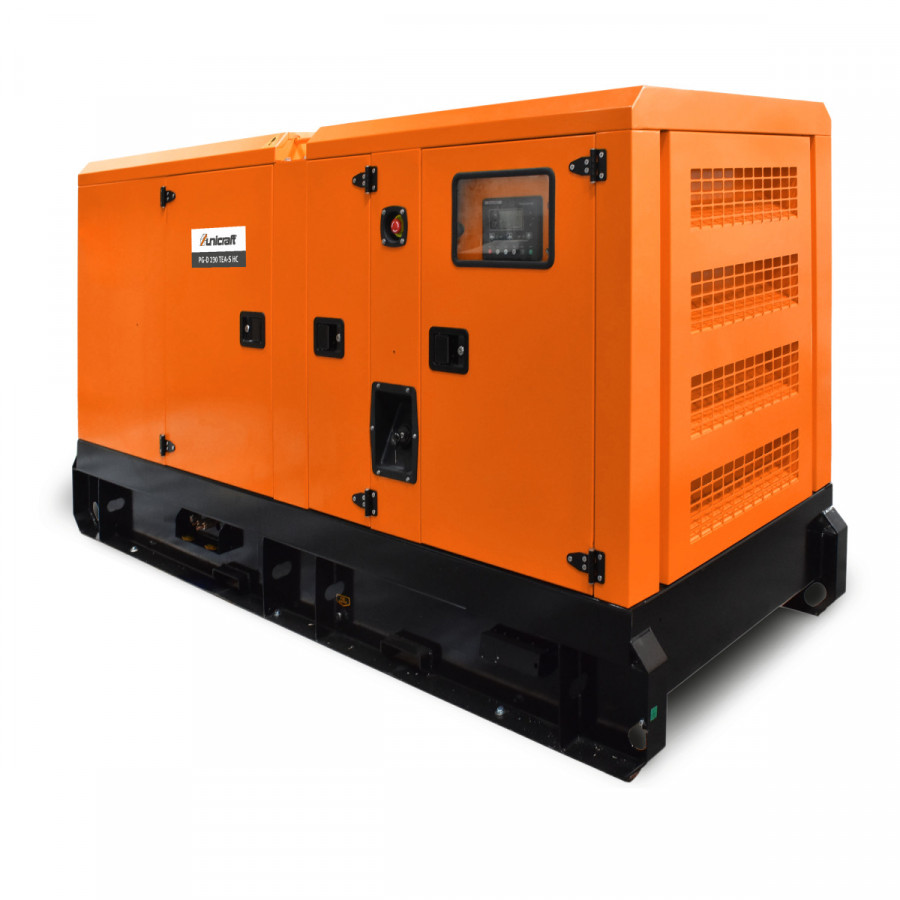

Generatorius trifazis dyzelinis PG-D 230 TEA-S HC

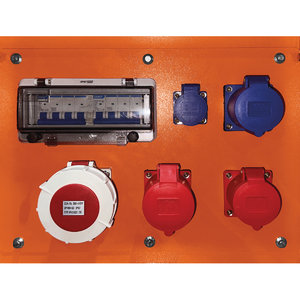

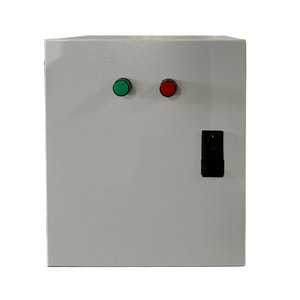

Diesel power generator for home feeding Long running times thanks to large tank Including 1h socket and changeover switch Includes insulation monitoring for all outlets except 1h socket Suitable for domestic feed-in with manual mains isolator switch Also equipped with connection for automatic mains disconnector Soundproofed diesel engine (complies with noise and exhaust emission regulations) Connections ergonomically located on the side of the appliance in a control panel with digital display (DC voltage, output power, AC voltage, frequency, amperage, operating hours) Splash and impact protection thanks to full cladding Electronic voltage regulation AVR Low oil indicator Convenient starting at the touch of a button with E-Start With preheater for quick and easy starting even in cold temperatures Equipped with high-quality "Stamford generator" Drive 4D20G00/5 Emission standard Euro 5 Power factor 0.8Cos ɸ Starter E-Start Fuel diesel Tank capacity 60l Running time at 50% load 10h Running time at 100% load 8h Oil tank capacity 5,5l Coolant capacity 8l Sound pressure level Lp 75dB(A) Sound power level Lw 97dB(A) Mains frequency 50Hz Type Synchronous Nominal voltage 230 / 400V Limited output power (apparent power) 6.9 / 23kVA Limited output power (active power) 5.4 / 18kW Continuous output power (apparent power) 6.0 / 20kVA Continuous output power (active power) 4.8 / 16kW Speed generator 1500min¯¹ Generator IP degree of protection IP 23 Socket type 1x 230V, 16 A, Schuko / 1x 230V, 32 A, CEE / 1x 400V, 16 A, CEE / 1x 400V, 32 A, CEE / 1x 400V, 32 A, 1h Socket IP degree of protection IP 44 Length (product) approx. 2050mm Width/depth (product) approx. 850mm Height (product) approx. 1150mm Net weight approx. 780kg
