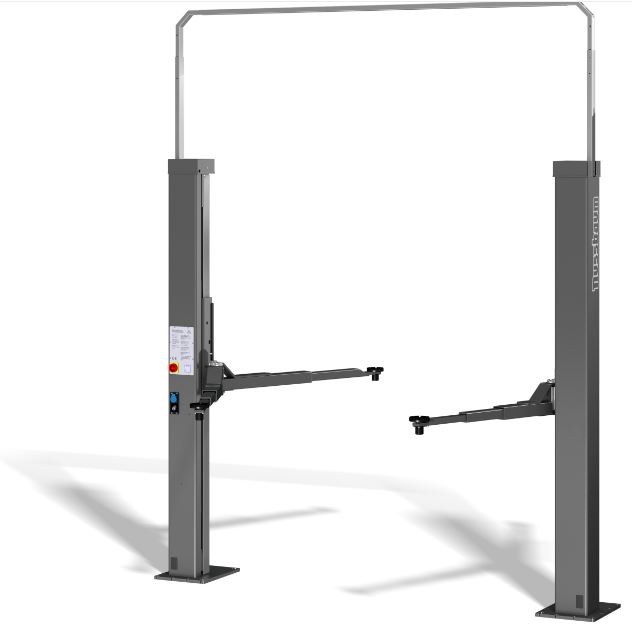

2-post lift Smart lift 2.35 SL DT, 3.5T E-Set

The electromechanical 2 column lift Smart Lift 2.35 SL DT with spindle, a load capacity of 3500 kg and asymmetrical 2-times telescopic arms is the ideal lift for the price-conscious and demanding car workshop. With its low minimum height and flexible installation width, it fits into any car workshop. The simple cable connection between the columns can either be installed in the floor or via a simple, height-adjustable cable bridge at the top between the columns. Capacity 3500 kg RAL color RAL 7016 - Grey Coating Powder coating Pick up pad height min 102 - 166 mm Min length front arm 570 - 1160 mm Min length rear arm 940 - 1495 mm Lifting/lowering time 40 sec Lifting height max. 2010 mm Required ceiling height 2900 mm Total height min 3716 - 4167 mm Column height 2890 mm Clearance height min 3682 - 4133 mm Total width min 3230 - 3350 mm Recommended installation width 3230 mm Installation width min. 3230 - 3350 mm Drive-through width column min 2650 - 2770 mm Drive-through width lifting carriage min 2280 - 2520 mm Clear distance between columns min 2650 - 2770 mm Motor power per column 1,5 KW Pick up device Synchronization system E-Set Compressed air supply ja Electrical connection (Ph/V/Hz) 3 Ph , 400 V , 50 Hz Fuse protection Foundation length 3750 mm Foundation width 1600 mm Concrete thickness 200 mm
