Product info

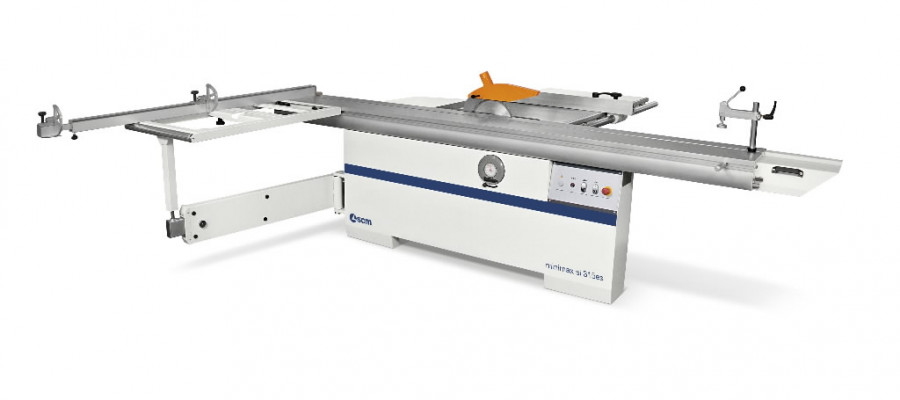

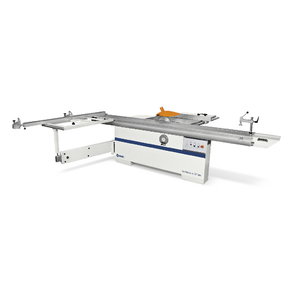

cast iron saw-spindle moulder worktable dim. 940x560mm
blades tilting 90° ÷ 45°
max. saw blade diam. with scoring blade installed 315mm
max. saw blade projection from table at 90°/45° 100/71mm
scoring blade diameter 120mm
squaring stroke (standard) 2600mm
cutting width on parallel fence 1270mm
three-phase motor 5kW
three-phase motor (scoring) 0,55kW
exhaust outlets diameter 120mm
in Set 58.04.90 Maximum squaring stroke 3200mm
