Product info
JJointing:
Infeed table width 260mm
Infeed table length 1120mm
Max. cutting depth of joints 4mm
Electrical Data:
Supply voltage 230V
Mains frequency 50Hz
Input power saw 2,2kW
Input power planer 2,2kW
Input power moulder 1,5kW

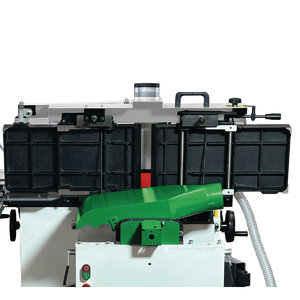

Thicknessing table width 258mm
Thicknessing table length 545mm
Working height min. thickness 5mm
Working height max. thickness 225mm
Feed speed 7m/min

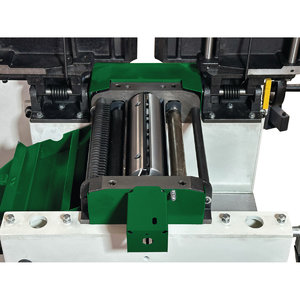

Planing shaft diameter70mm
Number of planing blades 3pcs
Planing shaft speed 5500min¯¹

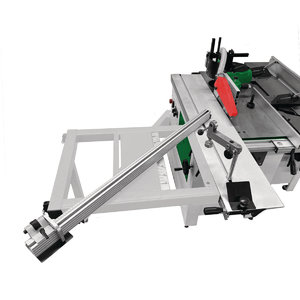

Sliding table length 1300mm
Sliding table width 238mm
Table length 920mm
Table width 410mm
Mandrel diameter 30mm
Usable spindle length 105mm
Spindle height adjustment 110mm
Spindle speed(s) 1400/4000/6000/9000min¯¹
Milling cutter diameter max.:
Max. tool diameter 160mm
Saw blade angle 90 – 45°
Max. cutting height at 90° 78mm
Diameter of (main) saw blade 254mm
(Main) saw blade speed 4000min¯¹
