Product info

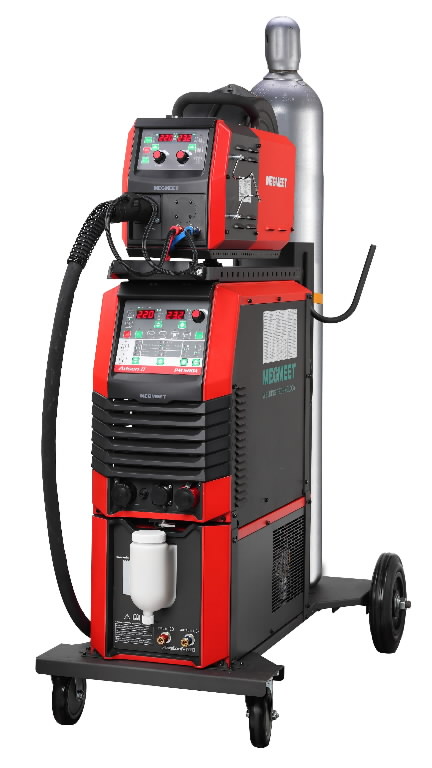

Inverter based professional welding machine with separated wire feeder. It is suitable for MIG/MAG and Pulsed MIG welding of mild steel, stainless steel and aluminium.
Easy settings with synergic welding programs and intuitive interface.
Perfect wire feedability: 4 drive rolls.
Warranty period for power source is 36 months. The warranty period for other components (wire feeder, cooler, etc) is 12 months.
Input - 380V +/-25% 3f/50Hz.
Current range - 30-400A.
Duty cycle - 400A @100%.
Welding modes - 2T / 4T / Special 4T / Spot Welding / Intermittent Welding.
Welding programs:
Mild steel:
- solid wire 0,8/1,0/1,2mm at 100% CO2 and 80% Ar + 20% CO2
- flux cored wire 1,2mm at 100% CO2.
- single pulse 0,8/1,0/1,2mm.
- double pulse 0,8/1,0/1,2mm.
Stainless steel:
- flux cored wire 1,2mm at 100% CO2.
- single pulse 1,0/1,2mm.
- double pulse 1,0/1,2mm.
Aluminium:
- single pulse 1,2mm (pure aluminium / aluminium silicon alloy, aluminium magnesium alloy).
Wire range - 0,8-1,2mm.
Protection class - IP23S.
Power source, wire feeding unit, liguid cooling unit, 5m interconnection cable, trolley, ground cable (5m*35mm2), input power cable (3m), V-type drive rolls 0.8mm/1.0mm and 1.2mm/1.6mm and also U-type 1.0/1.2mm and 1.2/1.6mm.
