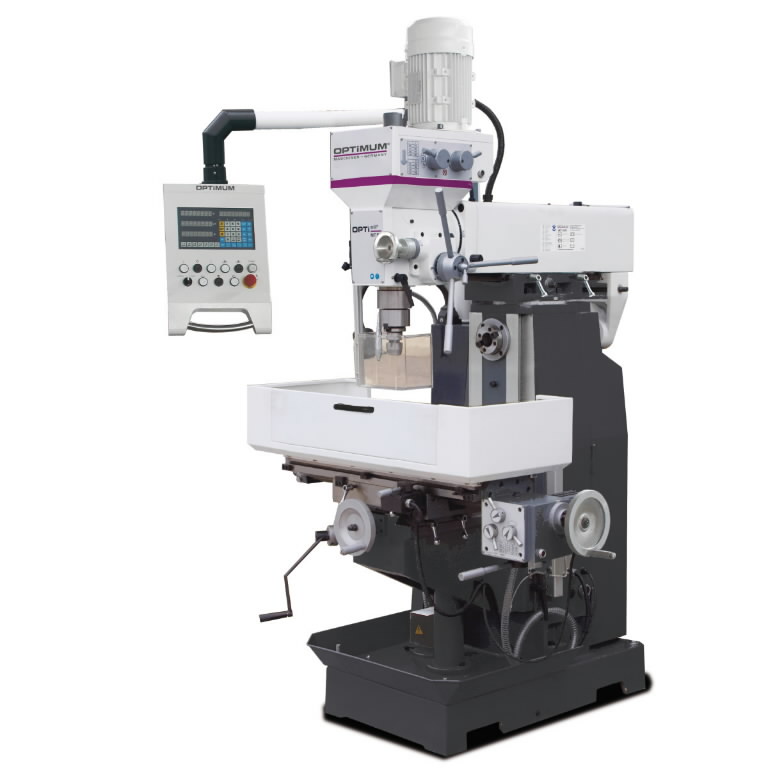

Drilling-milling machine OPTImill MT50

Drilling/milling output Max. size milling head100 mm Max. size shaft milling cutter25 mm Drilling performance steel (S235JR)30 mm Continuous drilling performance steel (S235JR)25 mm Electric Data Supply voltage400 V Mains frequency50 Hz Electrical connections Total rated value4.5 kW Feed speed X axis24 – 720 mm/min Horizontal spindle Drive motor output1.5 kW Reach0 – 185 mm Spindle chuckISO 40 DIN 2080 Speed range60 – 1350 min¯¹ Number of gears9 Milling table horizontal Table length1000 mm Table width240 mm T-groove size14 mm T-groove number4 Max. load bearing capacity160 kg Travel X axis manual580 mm Y axis manual200 mm Z axis manual340 mm X axis automatic500 mm Vertical spindle Reach240 – 650 mm Spindle chuckISO 40 DIN 2080 Speed range115 – 1750 min¯¹ Number of gears8 Vertical spindle normal operation1.1 / 2.2 kW Quill stroke120 mm
