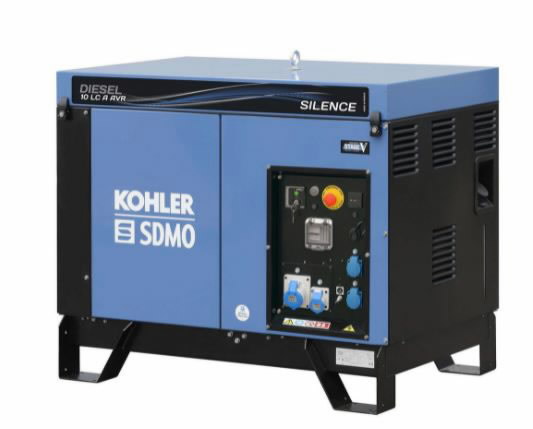

Product info
GENERAL SPECIFICATIONS
RangeDIESEL
Frequency (Hz)50 Hz
Max power LTP (kW)8,3
Nominal voltage (V)230
Number of PhaseSingle phase
FuelDiesel
Tank (L)27
75% cons. (l/h)2,6
75% Autonomy (h)10,4
Sound power level guaranteed LwA dB(A)94
Acoustic pressure level @1m in dB(A)78
Acoustic pressure level @7m in dB(A)65
ENGINE SPECIFICATIONS
Engine brandKOHLER DIESEL
Engine ref.KDW702
DistributionDiesel O.H.V.
StartElectrical
Low Oil pressure shutdownOui
Displacement (cm3)686
Oil capacity (L)1.60
ALTERNATOR SPECIFICATIONS
TechnologyCollar and brush
AVR RegulationYes
Indication of protectionIP 23
Insulation classH
PLUGS AND PANEL DESCRIPTIVE
2 230V 10/16A sockets - circuit breaker + 1 230V 16A socket - circuit breaker + 1 230V 32A socket - circuit breaker + emergency stop button + hour meter + indicator + APM202
DIMENSIONS AND WEIGHT
Lenght (cm)121,1 (122,2)
Width (cm)79 (80,4)
Height (cm)105,6 (105,6)
Dry Weight (kg)310
PRODUCT ADVANTAGES
Generating set guaranteed 3 years
KOHLER water-cooled industrial engine
Very Silent
Soundproofing and against shocks panels
Hydrocarbons bulk tank
ACCESSORIES SUPPLIED
User and maintenance manual
Lifting eye
Battery without maintenance
Hour meter
