Product info
Technical specifications:
Color Blue
Capacity 4000kg
Lifting height 2060mm
Lifting time 40s
Lowering time 40s
Lowest lifting point 75-185mm
Long arm extraction 1130-1840mm
Short arm extraction 635-1065mm
Drive through width 2394-2514mm
Distance between columns 2770mm
Total width 3350 mm
Total height of the column 2890mm
Motor capacity 2x 1,5kW
Power 400V/50Hz

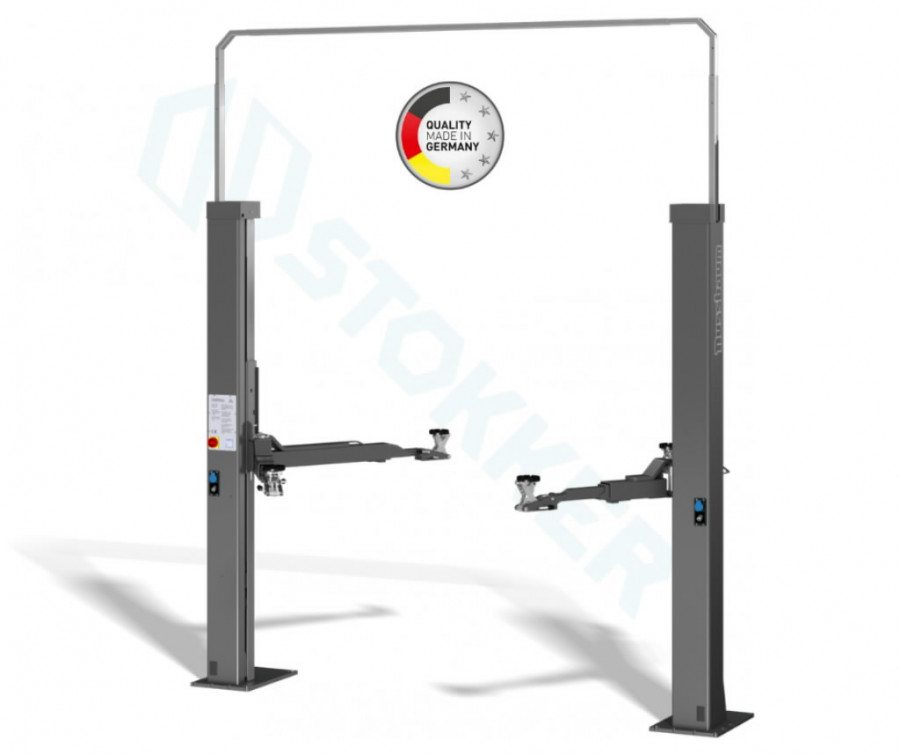

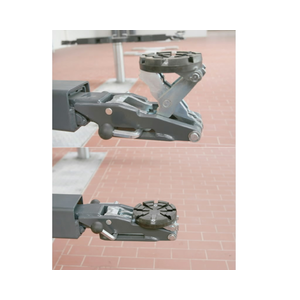

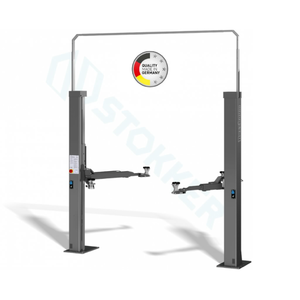

The electromechanical 2 column lift Smart Lift 2.40 SL MM with spindle, a load capacity of 4000 kg and asymmetrical 2-times telescopic arms is the ideal lift for the price-conscious and demanding car workshop. With its low minimum height and flexible installation width, it fits into any car workshop. The simple cable connection between the columns can either be installed in the floor or via a simple, height-adjustable cable bridge at the top between the columns. The Mini Max support plates allow easy access to the pick-up points of lowered vehicles, vehicles with deep-drawn side skirts or off-road vehicles. The support plates can be conveniently raised to the subfloor by foot after swiveling
