Product info

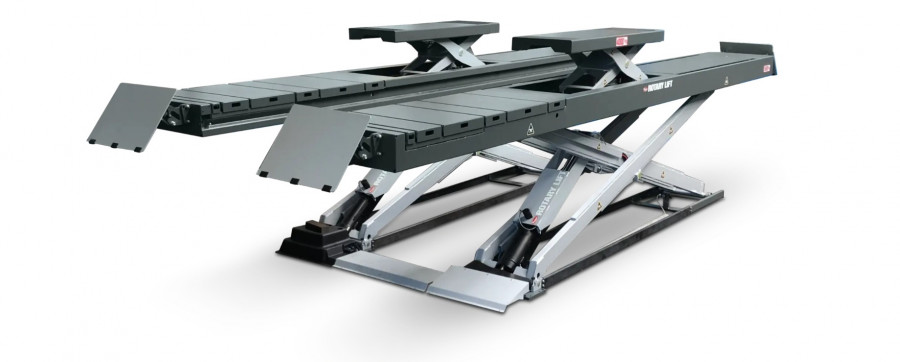

Scissor lift design: Scissors with runways
Mode of drive: electrohydraulic
Type of installation: surface mounted
Rated load capacity: 6000 kg
Lifting height max.: 1805 mm
Lowering time loaded: 40 s
Play detector: not possible
Surface coating: powder coated
Wheel alignment: standard
Length of runways: 4600 mm
Width of runways: 650 mm
Space of runways: 870 mm
Wheel free lift: standard
Rated load capacity of wheel free lift: 4000 kg
Lifting height of wheel free lift: 490 mm
Intake length wheel free lift (min.): 1390 mm
Intake length wheel free lift (max.): 2000 mm
Length of wheel free lift: 1390 - 2100 mm
Driving power: 3,5 kW
Length: 5500 mm
Width: 2200 mm
Installation depth: 295 mm
