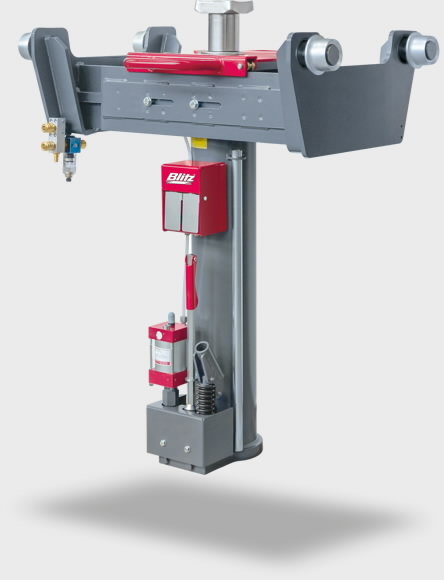

Pit lift Blitz S 15 Vario Flat

Specification: Capacity 15T Stroke 800mm Adjustable chassis width 800-1100mm Chassis depth 285mm Piston rod diameter 80mm Pivot diameter 55mm Weight 285kg Required pit depth 1021mm Suspended pit lift with flat, transversely adjustable chassis (standard) Hydraulic-pneumatic quick lift that ensures a quick approach of the piston rod to the load point Load lift via air motor allows lifting the load simply by pressing a button Stepless fine lift via hand lever - For precise adjustment of the lifting ram on the vehicle - important for sensitive lifting and when inserting aggregates. Sensitive lowering of the lifting ram via adjustable lever Hydraulic-pneumatic forced repatriation allows quick return of the ram with and without load
