Product info

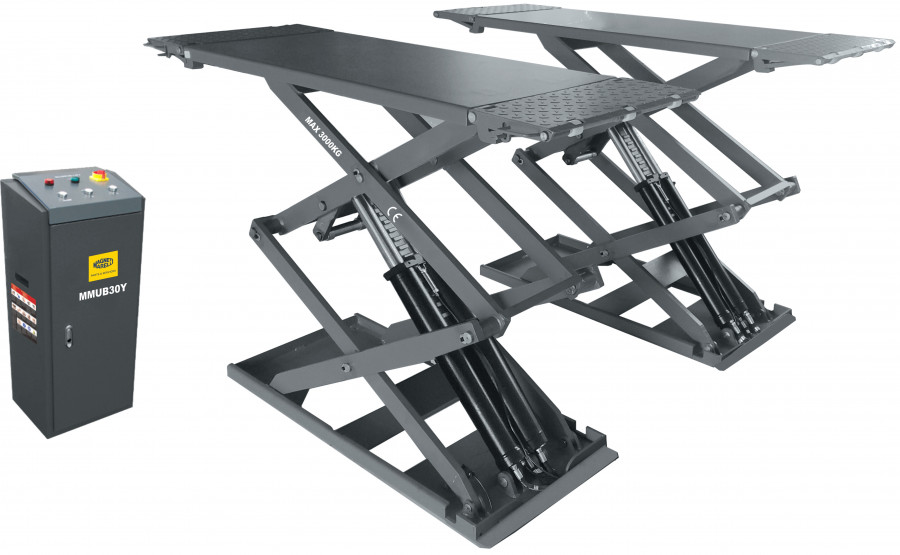

Drive Electrohydraulic
Pneumatic lock release
Lifting capacity 3000 kg
Lifting height 1850 mm
Initial platform height 105 mm
Platform length 1450-2050 mm
Platform width 660 mm
Lifting time ≤55 s
Lowering time ≤55 s
Length of the entire lift 2020 mm
Width of the entire lift 2045 mm
Power supply 3/N/PE~380V, 50Hz,10A
Engine output 2.2 kW
Hydraulic oil 16 l
Air pressure 6-8 bar
Operating temperature 5-40°C
Ambient humidity 30-95%
007935011085 MMUB30Y kasutusjuhend_ET
007935011085 MMUB30Y Manual EN
Magneti Marelli 2-year warranty
Magneti Marelli provides a 2-year company warranty for its products. The 2-year company warranty requires:
-
the user to carry out periodic maintenance activities and to use the device in accordance with the user manual,
-
after the purchase of the device, an annual inspection and maintenance of the device performed by the Stokker service team.
-
