Product info
Technical specifications:
Capacity 3500kg
Lifting height 2050mm
Lifting time 23s
Lowering time 14s
Lowest lifting point 115-190mm
Long arm extraction 995-1823mm
Short arm extraction 570-1160mm
Drive through width 2470mm
Distance between columns 2766mm
Total width 3350mm
Total height of the column 4040mm
Required ceiling height 4200mm
Motor capacity 3kW
Power 400V/50Hz
Color: Blue

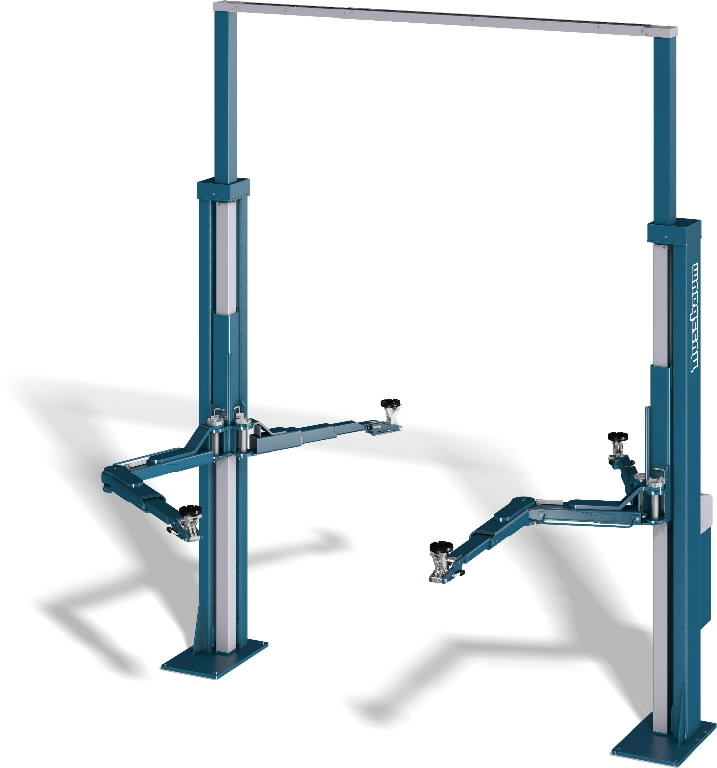

Fully hydraulic two-post lift with patented HyperFlow® technology and mechanical safety latch for triple security. Quiet running motor, faster lifting and lowering cycles. Controls via
commander lever. Simple and safe synchronous lifting arms compensation via patented HyperFlow® technology replaces mechanical lifting arm compensation using cables. No
base plate connection. Low-maintenance and almost wear-free hydraulic cylinders. Self-purging hydraulic system. Simple and fast assembly. Variable installation width. The lifted
load can be controlled by lowering into and lifting from the park position using the safety latches.
